Q212 Line Array Speaker

· Product Overview

Frequency Response: 55Hz-20KHZ Components: 2*12"+2*3" Power RMS/Peak: 1200W/4800W

Inventory

Model Number:

重量

Quantity for Quote:

Add to Cart Buy Now Get a quote

隐藏域元素占位

K208 Line Array Speaker

HDL20-A Line Array Speaker

Product details

Q212	TECHNICAL SPECIFICATIONS
Components	212"+23"
Frequency Response	55Hz-20KHz
Dispersion	120°*10°
Sensitivity(1m@1w)	99dB
Max SPL @ 1m	140dB
Power RMS/peak	1200W/4800W
Nominal Impedance	4Ω
Recommend Amps	4*1350W@8Ω（with DSP）
Connector	Original Neutrik NL4*2 +1/-1
Enclosure	18mm birch plywood and black painting
Product size(mm)	360975535
Shipping Size	120630460(1pc/carton)/1040925600(2pcs/case)
N.W./G.W.(kgs)	75/80(1pc/carton)

The LIVE PERFORMANCE SERIES features a dual 12" two-way passive line array, available in active or passive configurations, delivering powerful, high-impact sound tailored for dynamic stage performances.

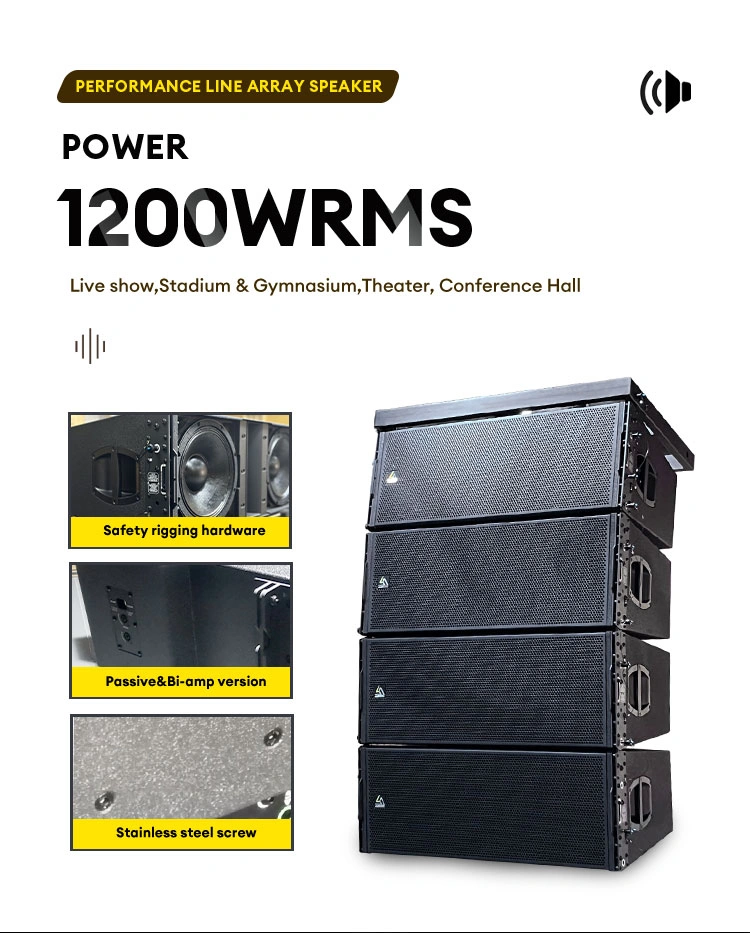

The PERFORMANCE LINE ARRAY SPEAKER delivers 1200WRMS of power, equipped with safety-certified rigging hardware and stainless steel screws, offering passive/bi-amp flexibility for high-impact sound in live shows, stadiums, theaters, and conference halls.

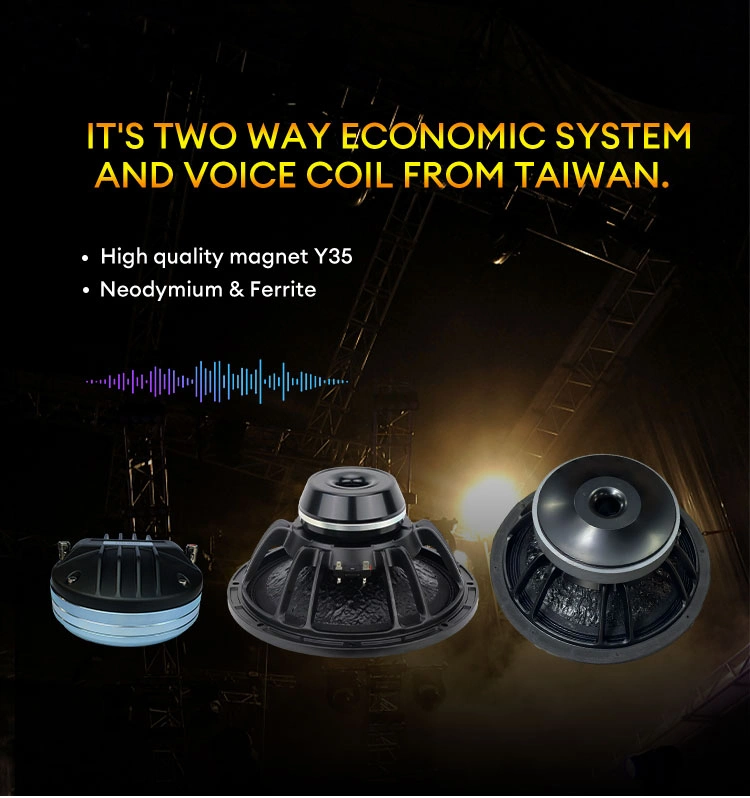

This two-way economic system features a high-grade Taiwanese voice coil and powerful Y35 neodymium/ferrite magnets, delivering exceptional sound quality and reliability.

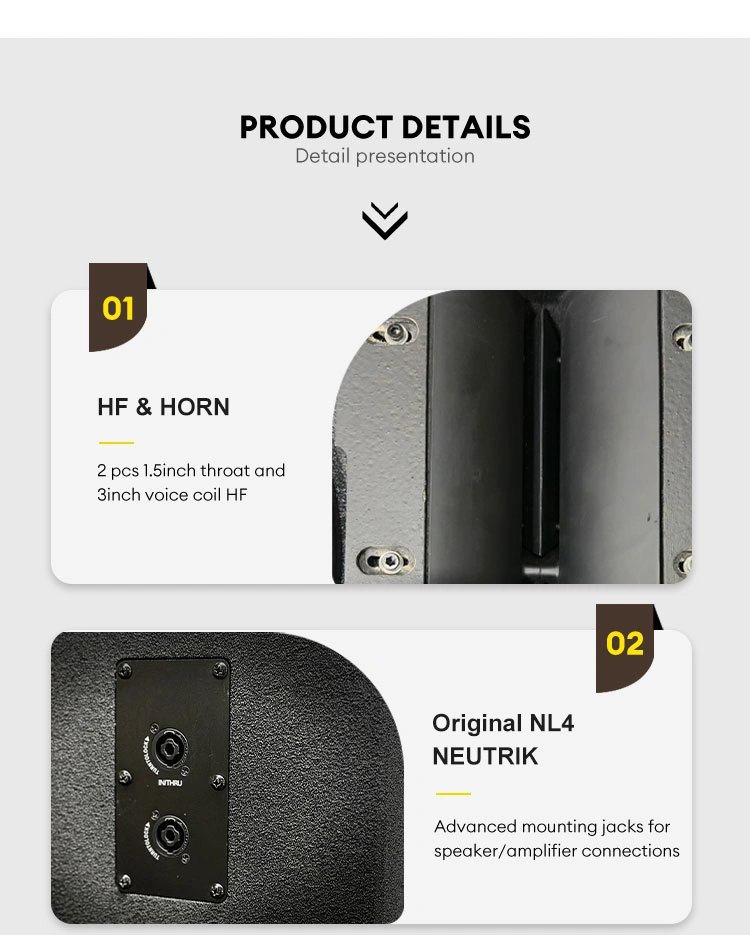

Equipped with high-frequency (HF) horns featuring dual 1.5-inch throats and 3-inch voice coils, original NL4 NEUTRIK connectors, and advanced mounting jacks for secure speaker/amplifier integration, this system delivers crisp, powerful sound.

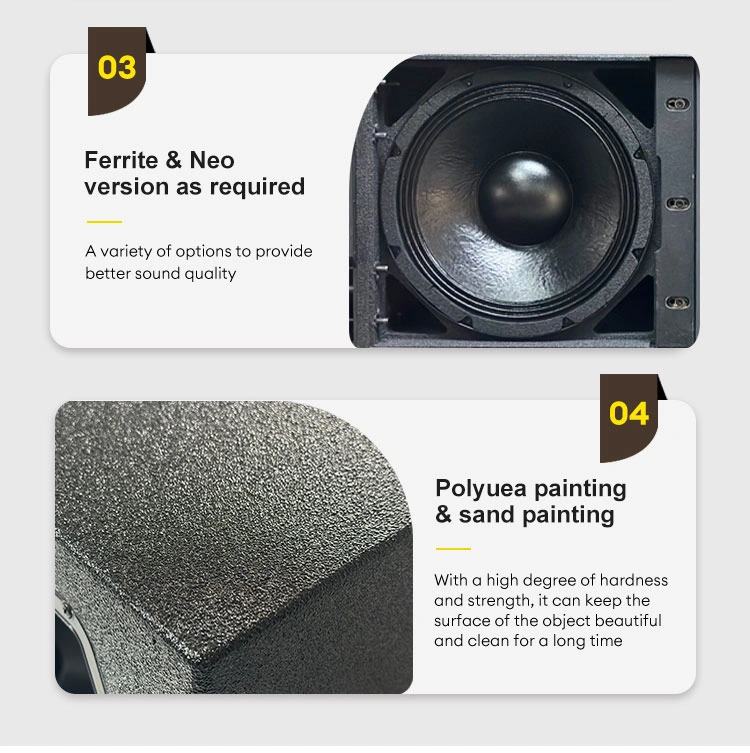

Available in ferrite or neodymium magnet versions with customizable options for optimized sound quality, and finished with durable polyurea or sand-textured paint, this system offers exceptional hardness, strength, and long-lasting aesthetic appeal.

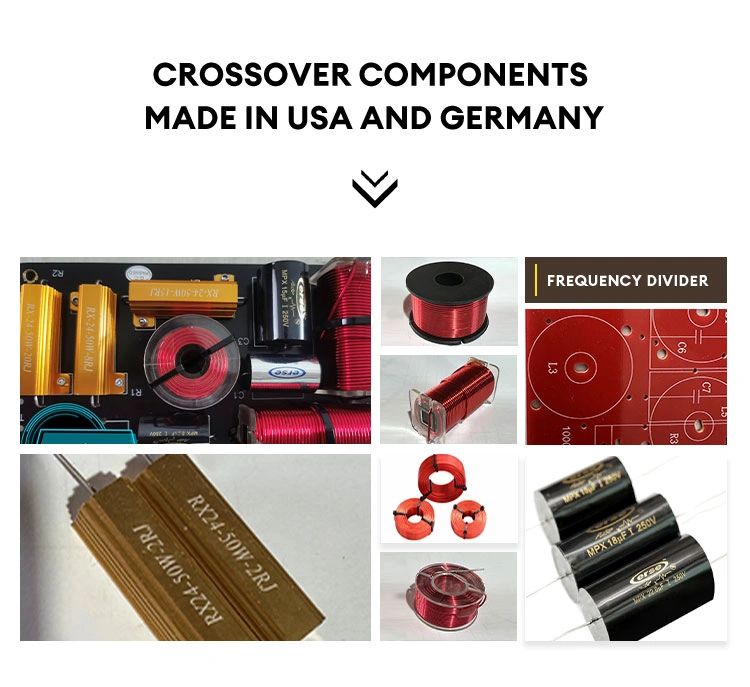

CROSSOVER COMPONENTSMADEIN USA AND GERMANY

The K208 is engineered to meet the demands of diverse event scenarios with its adaptable design, making it easy to handle multiple occasions and deliver consistent, high-quality sound.

Audiences and professionals alike applaud L-solution's professional speakers for their pristine sonic clarity, concert-grade engineering, immersive sound dispersion, and premium protective packaging. Rigorous performance testing ensures flawless vocal articulation and powerful, long-throw audio projection, delivering unmatched sonic precision tailored for discerning listeners.

OUR CERTIFICATE and Professional testing report

With a 20-year veteran technical team, a 2200m² facility, and rapid sampling capabilities, we deliver efficient, high-quality solutions.

With a 20-year experienced technical team, we deliver high sound pressure, high-fidelity audio solutions that meet rigorous quality standards for unmatched performance and sensitivity.

Our production flow seamlessly integrates precision engineering, from CNC-machined plywood and meticulous painting to HF/LF component installation, rigorous frequency testing, and final sealing checks, ensuring every L-SOLUTION cabinet meets our exacting standards before shipping.

Every product undergoes rigorous frequency testing by professional technicians to ensure peak performance before shipment.

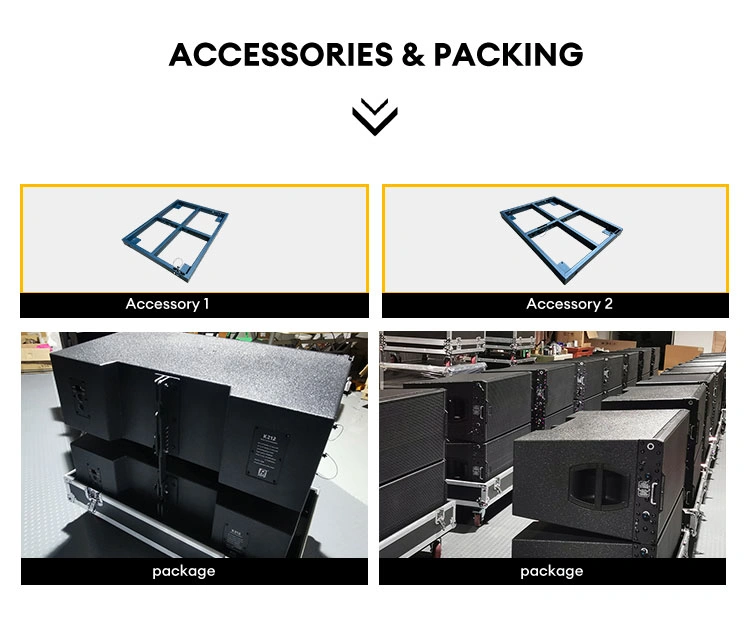

Our products are shipped with multiple layers of protection, including upgraded shock-resistant packaging, collision-proof materials, waterproof sealing, and a reusable flight case, ensuring safe and secure delivery every time.

L-solution's professional commercial audio systems have graced stages worldwide, delivering powerful sound tailored to meet the demands of diverse events and venues.

FAQ:

Q1.Can I have a sample order for the loudspeaker?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2.What about the lead time?
A: Sample needs 3-5 days, and mass production time needs 2-3 weeks from the confirmation of deposit.

Q3.Do you have any MOQ limit for loudspeaker orders?
A: MOQ 6 PCS.

Q4.How do you ship the goods and how long does it take to arrive?
A: We usually ship by Sea.It usually takes 30-45 days to arrive.The airline is also optional.

Q5.How do I proceed with an order for a loudspeaker?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for a formal order.
Fourthly We arrange the production.

Q6.Is it OK to print my logo on loudspeaker products?
A: Yes.Please inform us formally before our production and confirm the design first based on our sample.

Q7: Do you offer a guarantee for the products?

A: Yes, we offer a 1-year warranty on our products.

Q8: How do we deal with the fault?
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new orders for small quantities.
Or we can discuss the solution including a re-call according to the real situation.
