HDL20-A Line Array Speaker

· Product Overview

Frequency Response: 55Hz-20KHZ Components: 2*10"+1*3" Power RMS/Peak: 700W/1400W

Inventory

Model Number:

重量

Quantity for Quote:

Add to Cart Buy Now Get a quote

隐藏域元素占位

Q212 Line Array Speaker

Q312 Line Array Speaker

Product details

HDL20-A	TECHNICAL SPECIFICATIONS
Components	210"+13"
Frequency Response	55Hz-20KHz
Dispersion	100°*15°
Max SPL @ 1m	135dB
Power RMS/peak	700W/1400W
Nominal Impedance	8Ω
Recommend Amps	400W+400W@8Ω（with DSP）
Enclosure	18mm birch plywood and black painting
Product size(mm)	294705445
Shipping Size	527373785(1pc/carton)/850840530(2pcs/case)
N.W./G.W.(kgs)	34.6/40(1pc/carton)/34.6/95(2pcs/case)

HDL20—original factory craftsmanship, weekly live demos, 2-year warranty, and real sound test videos. Authentic quality, guaranteed.

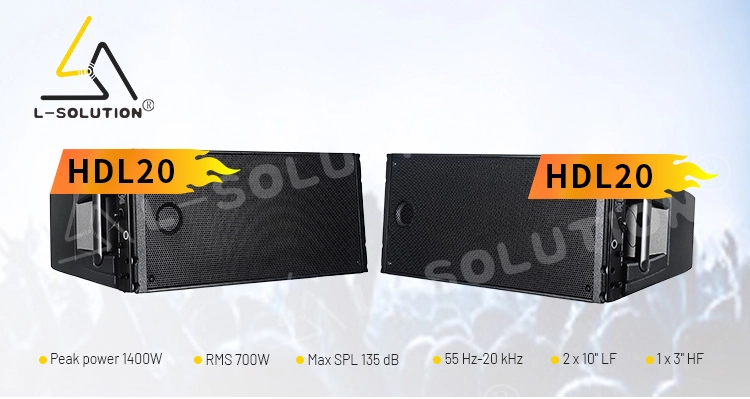

Engineered for power and precision, this professional speaker delivers 1400W peak/700W RMS, 135dB max SPL, and a 55Hz-20kHz frequency range through dual 10" LF drivers and a 3" HF compression driver.

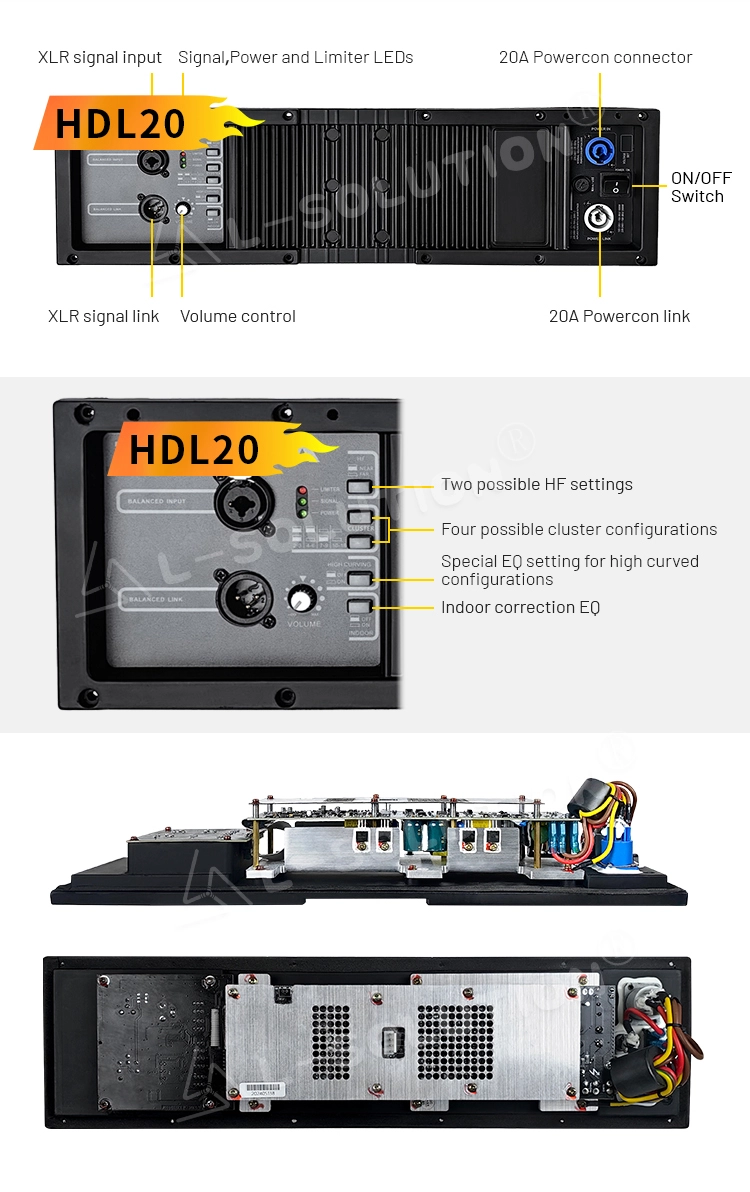

The HDL20 features ON/OFF switching, XLR signal input with volume control, 20A Powercon connectivity, dual HF settings, four cluster configurations (including a special E0 mode for curved setups), balanced inputs, and indoor EQ correction—all monitored via signal, power, and limiter LEDs.

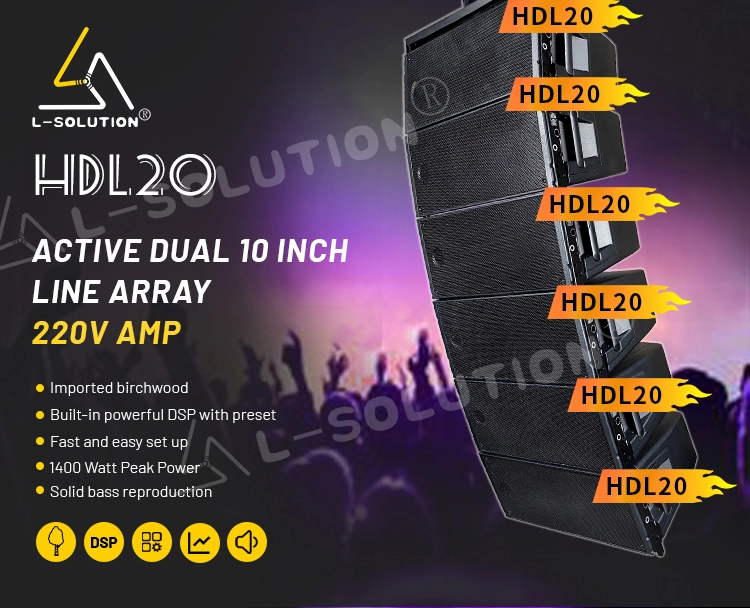

The HDL20 is a powerful active dual 10" line array with a 220V amplifier, crafted from imported birchwood, featuring built-in DSP presets, 1400W peak power, and solid bass reproduction for fast, easy setup and professional-grade sound.

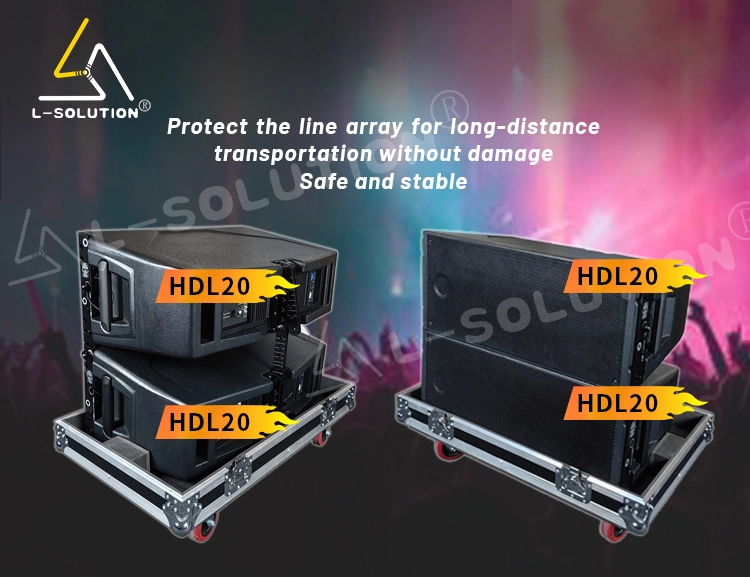

Engineered for safe, long-distance transportation, this line array system ensures secure, damage-free travel with robust construction for ultimate stability and protection.

OUR CERTIFICATE and Professional testing report

With a 20-year veteran technical team, a 2200m² facility, and rapid sampling capabilities, we deliver efficient, high-quality solutions.

With a 20-year experienced technical team, we deliver high sound pressure, high-fidelity audio solutions that meet rigorous quality standards for unmatched performance and sensitivity.

Our production flow seamlessly integrates precision engineering, from CNC-machined plywood and meticulous painting to HF/LF component installation, rigorous frequency testing, and final sealing checks, ensuring every L-SOLUTION cabinet meets our exacting standards before shipping.

Every unit undergoes rigorous 100% quality inspection and frequency testing, ensuring fully professional standards are met before shipment for guaranteed reliability.

Every product undergoes rigorous frequency testing by professional technicians to ensure peak performance before shipment.

Our products are shipped with multiple layers of protection, including upgraded shock-resistant packaging, collision-proof materials, waterproof sealing, and a reusable flight case, ensuring safe and secure delivery every time.

L-solution's professional commercial audio systems have graced stages worldwide, delivering powerful sound tailored to meet the demands of diverse events and venues.

FAQ:

Q1.Can I have a sample order for the loudspeaker?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2.What about the lead time?
A: Sample needs 3-5 days, and mass production time needs 2-3 weeks from the confirmation of deposit.

Q3.Do you have any MOQ limit for loudspeaker orders?
A: MOQ 6 PCS.

Q4.How do you ship the goods and how long does it take to arrive?
A: We usually ship by Sea.It usually takes 30-45 days to arrive.The airline is also optional.

Q5.How do I proceed with an order for a loudspeaker?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, the customer confirms the samples and places a deposit for a formal order.
Fourthly We arrange the production.

Q6.Is it OK to print my logo on loudspeaker products?
A: Yes.Please inform us formally before our production and confirm the design first based on our sample.

Q7: Do you offer a guarantee for the products?

A: Yes, we offer a 1-year warranty on our products.

Q8: How do we deal with the fault?
A: Firstly, our products are produced in a strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new orders for small quantities.
Or we can discuss the solution including a re-call according to the real situation.
