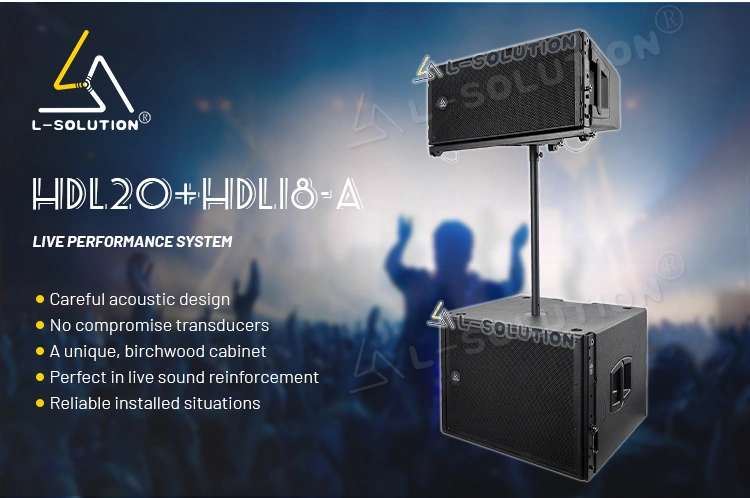

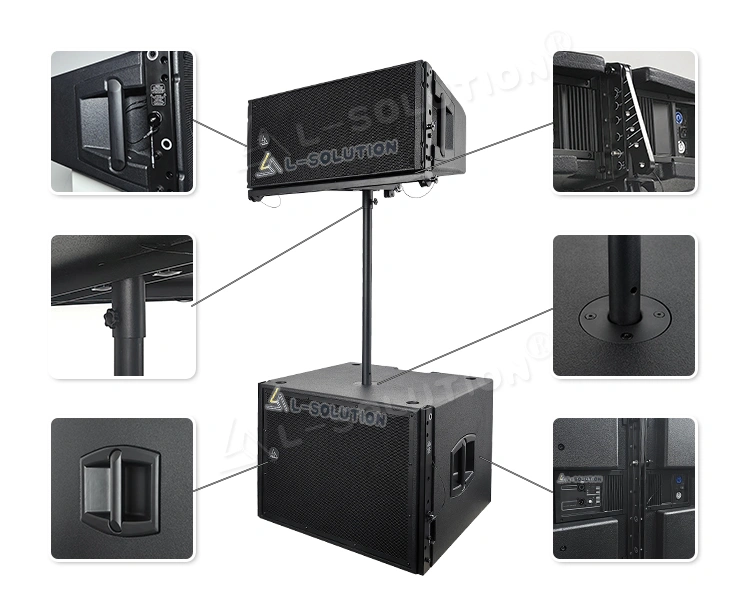

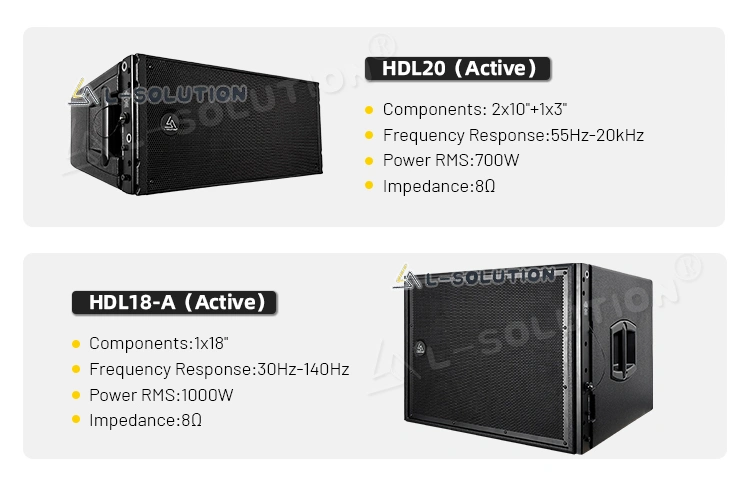

HDL20 & HDL18-A
· Product Overview
Inventory
Model Number:
重量
隐藏域元素占位
Product details
| HDL20 | TECHNICAL SPECIFICATIONS |

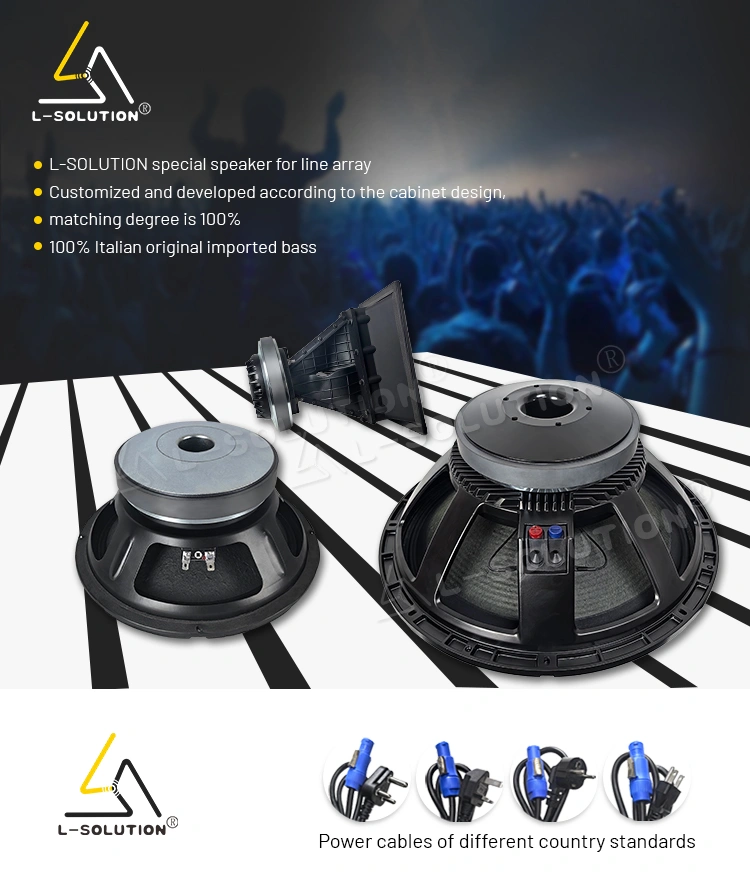

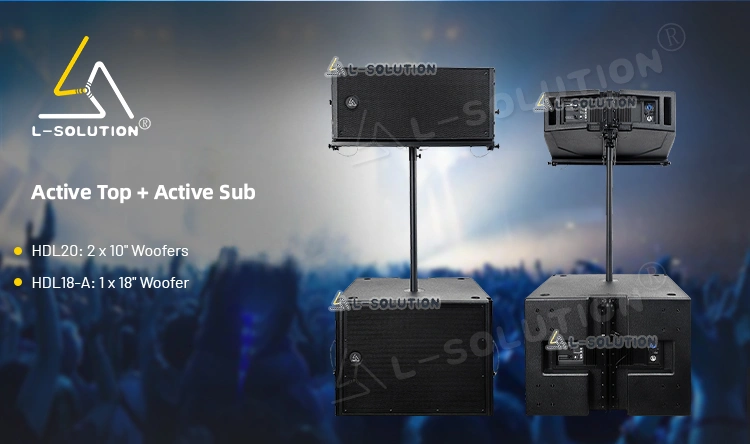

| Components | 2*10"+1*3" |
| Frequency Response | 55Hz-20KHz |
| Dispersion | 100°*15° |
| Max SPL @ 1m | 135dB |
| Power RMS/peak | 700W/1400W |
| Nominal Impedance | 8Ω |
| Recommend Amps | 400W+400W@8Ω（with DSP） |
| Enclosure | 18mm birch plywood and black painting |
| Product size(mm) | 294*705*445 |
| Shipping Size | 527*373*785(1pc/carton)/850*840*530(2pcs/case) |
| N.W./G.W.(kgs) | 34.6/40(1pc/carton)/34.6/95(2pcs/case) |
| HDL18-A | TECHNICAL SPECIFICATIONS |
| Components | 1*18" |
| Frequency Response | 30Hz-140Hz |
| Input Sensitivity(1m@1w) | -2dBu/+4dBu |
| Max SPL @ 1m | 135dB |
| Power RMS/peak | 1000W/2000W |
| Nominal Impedance | 8Ω |

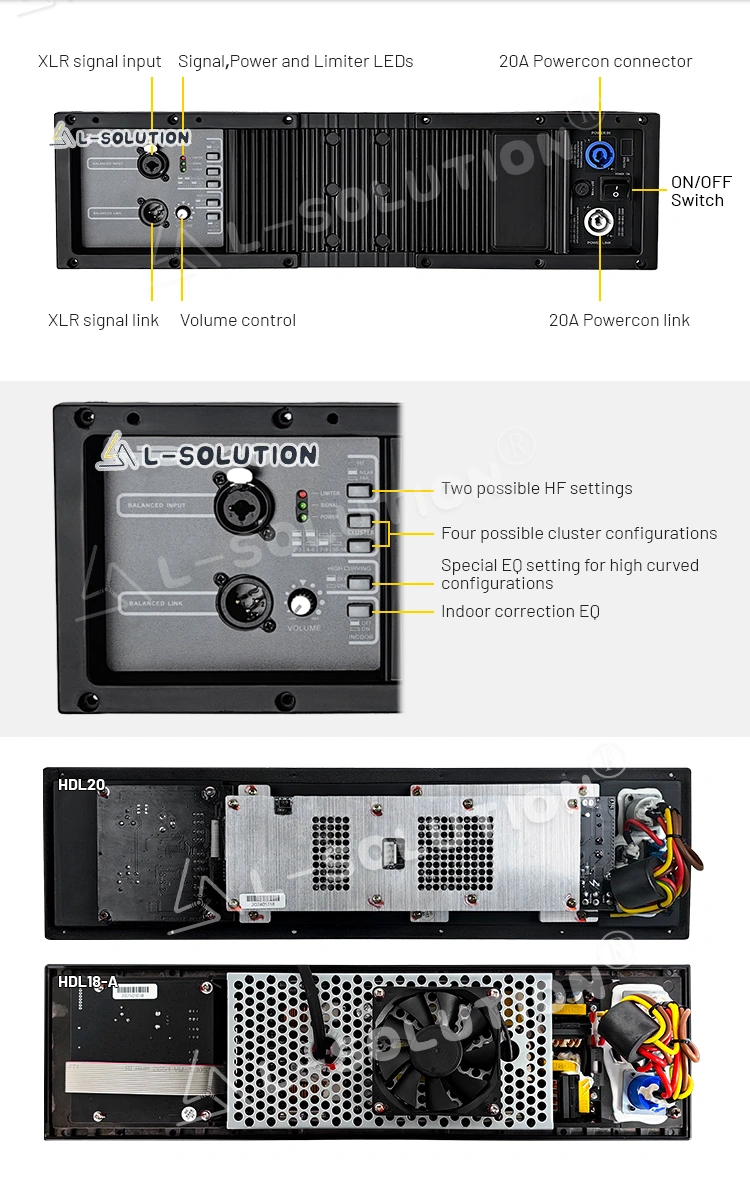

| Connector | Original Neutrik NL4*2 +1/-1 |
| Enclosure | birch plywood and black painting |
| Product size(mm) | 510*730*620 |
| Shipping Size | 605*820*710(1pc/carton) |
| N.W./G.W.(kgs) | 51.8/58(1pc/carton) |
FAQ: Q1.Can I have a sample order for the loudspeaker?
Q2.What about the lead time?
Q3.Do you have any MOQ limit for loudspeaker orders?
Q4.How do you ship the goods and how long does it take to arrive?
Q5.How do I proceed with an order for a loudspeaker?
Q6.Is it OK to print my logo on loudspeaker products?
Q7: Do you offer a guarantee for the products? A: Yes, we offer a 1-year warranty on our products.
Q8: How do we deal with the fault? |
