Indoor Stage Audio Case in Tanzania: Q212 Line Array + F221 Subwoofer System, Creating an Immersive Audio Experience for 800 People

Location: Tanzania

Date: June 2025

Project Type: Indoor stage

I. Project Background

The client for this cooperation is from Tanzania, and the audio system is mainly used for various events such as celebrations and gatherings on the local indoor multi-functional stage. The indoor stage covers a total area of approximately 400 square meters and can accommodate 800 people at the same time, serving as an important cultural and social event venue in the region. Previously, the stage suffered from issues such as uneven audio coverage, unclear vocals, and unstable equipment operation. Especially during large-scale events, the audience in the back row could hardly hear the stage sound clearly, which seriously affected the event experience and the quality of the event.

In June 2025, after comprehensive comparison and investigation, the client finally chose to cooperate with us. The core reasons are that we have professional audio debugging technology, which can accurately match the acoustic environment of the indoor stage; at the same time, the audio equipment we provide has been proven through long-term market testing to be extremely stable, capable of meeting the high-frequency and long-term use needs of the indoor stage, and completely solving the core pain points of their audio system.

II. Customer Needs

Combined with the usage scenario of the indoor stage (events for 800 people such as celebrations and gatherings), the client put forward clear project goals and core challenges, with the core needs focusing on two aspects: First, clear sound quality—ensuring that all 800 audience members in the stage can hear various sounds such as vocals and music clearly, without noise or interruptions, and with uniform sound field coverage. Second, equipment stability—it must be able to adapt to the long-term, high-power operation needs of the indoor stage, running continuously for hours without failures or freezes, avoiding any impact on the smooth progress of events due to equipment issues.

In addition, the client also had implicit needs: The installation of the audio system must fit the indoor stage layout, without affecting the stage's appearance and event processes; the debugging process must be efficient and quick, minimizing interference with the normal use of the venue.

III. Our Solution

To meet the client's core needs, as well as the acoustic characteristics of the indoor stage and the coverage requirements for 800 people, our team conducted professional on-site surveys and program demonstrations, and customized an exclusive audio solution for the client. The core configuration includes 6 Q212 line array speakers, 4 F221 subwoofers, and 4 STX815 monitor speakers, providing comprehensive guarantee for sound quality and stability.

First, we dispatched a professional technical team to conduct an on-site survey of the indoor stage, accurately measuring key parameters such as venue size, ceiling height, and wall materials. Combined with the acoustic reflection characteristics of the indoor space and the principle of symmetrical placement, we planned the installation position and angle of the speakers: The 6 Q212 line array speakers and 4 F221 subwoofers are placed symmetrically on both sides, with the Q212 line array speakers installed directly above the F221 subwoofers to form a stacked layout. This not only ensures uniform sound coverage without blind spots but also optimizes the sound field superposition effect, making the transition between high, mid, and low frequencies more natural, perfectly meeting the audio needs of the 800-person indoor stage. The 4 STX815 monitor speakers are placed at the front of the stage, facing the performers, to ensure that performers can clearly hear their own voices and background music, while avoiding sound reflection to the audience area and interfering with the audience experience, thus ensuring the stage performance effect.

Second, we performed professional programming and debugging to optimize sound quality parameters, balance high, mid, and low frequencies, and suppress noise and howling, ensuring clear and transparent vocals, rich and layered music. At the same time, we conducted full-power load testing on the equipment to ensure that the system can operate continuously at high power without failures, fully meeting the client's needs for long-term use.

IV. Key Product Advantages

The Q212 line array speakers, F221 subwoofers, and STX815 monitor speakers used in this project are all core products of our company, specifically designed for indoor stage scenarios. With their outstanding performance advantages, they perfectly meet the client's needs. The specific advantages are as follows:

1. Q212 Line Array Speaker

As the core equipment for main sound reinforcement in this project, the Q212 line array speaker is specially designed for medium and large indoor venues. It adopts dual 12-inch low-frequency drivers and dual 3-inch high-frequency drivers, with an integrated line array horn design that achieves a radiation angle of 90°×10°. Combined with the symmetrical placement and stacked layout with F221 subwoofers, it ensures uniform sound coverage, perfectly adapting to the audio needs of the 800-person indoor stage. Its frequency response range is 60Hz-18kHz (±3dB), with a sensitivity of 101dB for low frequencies and 107dB for high frequencies, and a maximum sound pressure level of 134dB. It features high vocal clarity and no distortion, allowing every audience member to capture every detail of the stage sound clearly. In addition, the speaker is made of scratch-resistant and waterproof diamond sand coating and multi-layer birch plywood, paired with a reinforced metal grille, making it durable and sturdy. It is also equipped with simple and safe hanging accessories and ergonomic handles, ensuring easy installation and suitability for the stacked layout with F221 subwoofers, enabling long-term stable operation without damage.

2. F221 Subwoofer

As a low-frequency supplement device, the F221 subwoofer is focused on high power and strong impact. It adopts a professional 18-inch high-displacement low-frequency unit, with a frequency response range of 32-250Hz, a sensitivity of 98dB, a continuous power of 750W, a peak power of 3000W, and a maximum sound pressure level of 133dB. It can provide full and powerful low-frequency output, making up for the lack of low frequencies in the main sound reinforcement, enhancing the atmosphere and appeal of the music, and is particularly suitable for lively occasions such as celebrations and gatherings. The speaker is made of scratch-resistant and waterproof diamond sand coating and multi-layer birch plywood, paired with a reinforced metal grille, ensuring durability and sturdiness. With a weight of 50.2kg and dimensions of 715×600×530mm, it is stable in placement. It also has excellent heat dissipation performance, allowing long-term high-power operation without overheating failures, perfectly adapting to the long-term use needs of indoor stage events.

3. STX815 Monitor Speaker

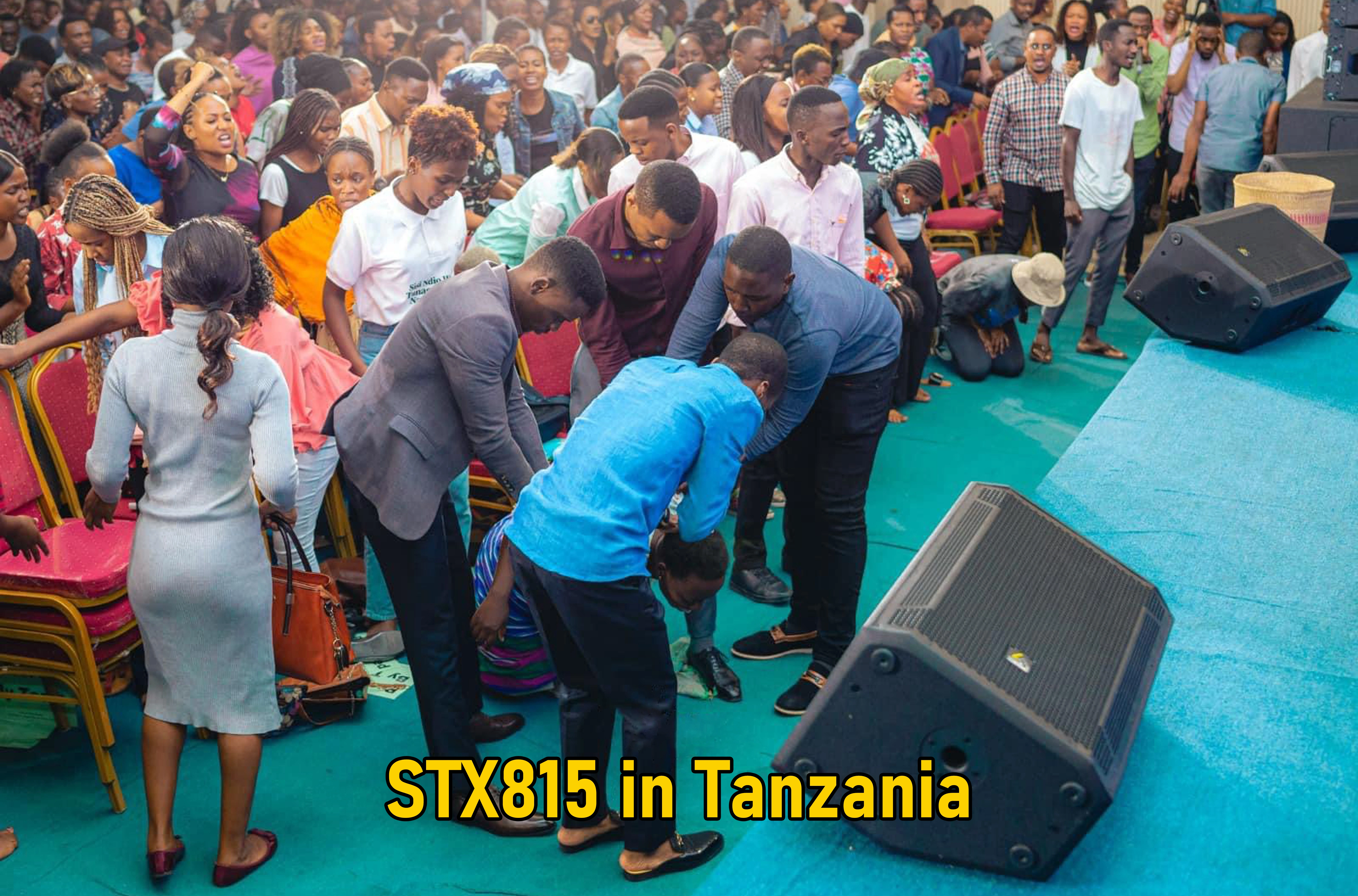

The STX815 monitor speaker is specially designed for stage performers, adopting a single 15-inch lightweight two-way system with a nominal coverage angle of 70°×70°, which provides concentrated directional control to avoid sound reflection to the audience area and interfere with the audience. At the same time, it ensures that performers can clearly hear their own voices and background music, allowing them to adjust their performance in a timely manner. Its frequency response range is 41Hz-20kHz (-10dB) and 55Hz-20kHz (±3dB), with a sensitivity of 96dB, a rated power of 800W, and a peak power of 3200W. It features stable sound pressure level, clear and transparent sound quality, and no noise or howling. The speaker is made of scratch-resistant and waterproof diamond sand coating and multi-layer birch plywood, paired with a reinforced metal grille, ensuring durability and sturdiness. With a compact and low-profile design, it will not block the audience's view. It also supports floor or bracket installation, suitable for placement at the front of the stage, and is wear-resistant and easy to clean, facilitating long-term maintenance.

V. Implementation Process

To ensure the efficient implementation of the project and the quality of audio system installation, debugging, and use, we strictly followed the standardized implementation process of "Survey - Installation - Testing", with professional control throughout the entire process. The specific steps are as follows:

1. Survey and Program Planning

After the project started, our professional technical team conducted a comprehensive on-site survey of the client's indoor stage in Tanzania, accurately measuring key parameters such as venue area, ceiling height, wall materials, and stage size, analyzing the acoustic characteristics of the indoor environment, and identifying potential factors that may affect sound quality (such as wall reflection and venue blind spots). At the same time, we reconfirmed details with the client, including event types, frequency of use, and coverage requirements for 800 people. Combining the performance characteristics of the Q212, F221, and STX815 speakers, we developed a detailed speaker installation layout plan, debugging plan, and implementation schedule, clarifying the responsibilities and milestones of each link to ensure the plan is scientific, feasible, and fully meets the client's needs. After the client's confirmation, we launched the subsequent implementation work.

2. Installation and Programming Debugging

In accordance with the established plan, our professional installation team went to the site with the equipment and performed installation operations in strict accordance with the specifications: First, place the F221 subwoofers and STX815 monitor speakers in the designated positions, then hoist and fix the Q212 line array speakers directly above the F221 subwoofers, adjusting the hoisting angle to ensure no blind spots in coverage. We fixed all equipment firmly, connected the relevant lines, ensuring standardized and firm connections, and sorted and protected the lines to avoid confusion affecting use and appearance. After installation, the technical team conducted professional programming and debugging, including sound field balance, sound quality optimization, volume adjustment, and howling suppression. Through repeated debugging, we ensured the balance of high, mid, and low frequencies, clear vocals and rich music, and the monitor effect met the performers' needs. At the same time, we tested the stability of the equipment to identify potential faults.

3. Testing and Optimization

After debugging, we conducted a full-scenario simulation test: simulating the on-site environment of an 800-person event, playing various audio such as vocals and music, and arranging personnel to test the sound clarity and volume at different positions in the venue (front row, back row, corners) and record the test data. At the same time, we conducted a long-term high-power load test, running the equipment continuously for more than 8 hours to observe the operation status and check for overheating, sound interruption, noise, and other issues. Based on the test results, we made precise adjustments to the sound quality parameters and speaker angles until all indicators met the client's requirements, ensuring no audio problems during the event. Finally, we completed the test and submitted the test report and equipment user manual to the client.

VI. Project Results

This indoor stage audio project in Tanzania was successfully completed and put into use in February 2026. After practical event verification, the project achieved remarkable results, fully meeting the client's expectations. The specific performance is as follows:

1. Excellent sound quality: The 6 Q212 line array speakers, 4 F221 subwoofers, and 4 STX815 monitor speakers worked together to achieve uniform sound field coverage with no blind spots. During the 800-person event, every audience member could hear clear and transparent vocals and rich, layered music from any position, with no noise or howling, greatly improving the event experience.

2. Stable equipment operation: The entire audio system passed long-term high-power operation tests with no failures, freezes, or overheating, perfectly meeting the high-frequency and long-term use needs of the indoor stage, completely solving the client's previous problem of unstable equipment.

3. High customer satisfaction: After the project was completed, the client highly recognized the sound quality, equipment stability, and our professional services, and reached a long-term cooperation intention.

Customer Testimonial

"We are very grateful for the professional audio solution provided by your company. The combination of 6 Q212 line array speakers, 4 F221 subwoofers, and 4 STX815 monitor speakers completely exceeded our expectations! During the 800-person indoor event, the sound was clear in every corner, and the music atmosphere was excellent. The equipment ran continuously for a whole day without any failures, showing extremely high stability. Your technical team is professional and responsible, and every link from survey and program planning to installation and debugging was handled meticulously, completely solving our long-standing audio troubles. We are very satisfied with this cooperation and will definitely continue to choose your company for future stage audio upgrades and new projects." — Project Manager of Tanzania Client
